Hollyland PYRO 5 4K Overview

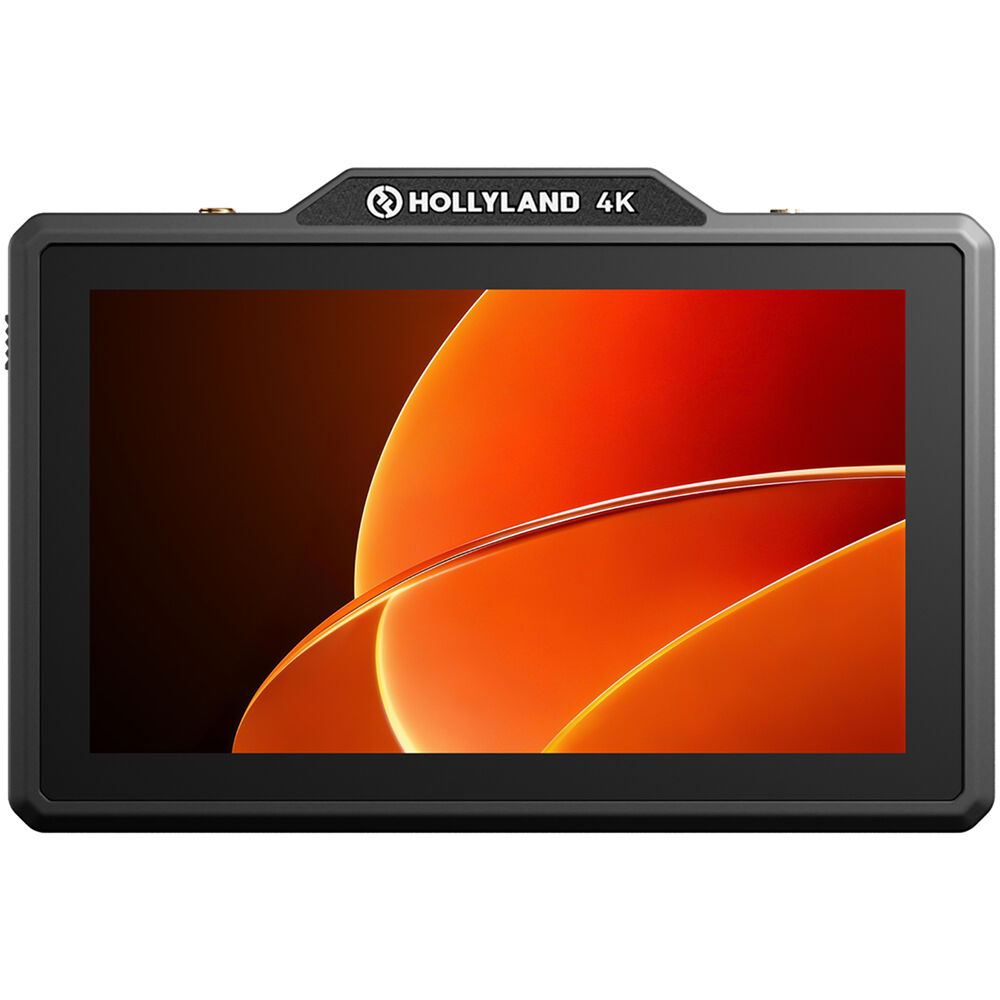

Transmit, receive, and monitor high-quality wireless video transmissions using the versatile Pyro 5 4K Wireless Transceiver Monitor from Hollyland. The Pyro 5 4K updates the Pyro 5 with transmission resolutions up to 4K30 and camera control. It features the same bright 5.5" touchscreen display, L-series battery plate, 1312' wireless transmission range, SD card recording, HDMI/SDI input/output, RTMP streaming, and more.
Auto Dual-Band Hopping & Smart Channel Selection
With Auto Dual-Band Hopping (ADH) and Auto Frequency Hopping (AFH) technologies operating on both 2.4 and 5 GHz bands, the Pyro 5 4K can automatically choose the clearest channel for reliable, uninterrupted wireless video transmission. These technologies address common issues such as signal interference, low transmission efficiency, and frequency congestion. The omnidirectional high-gain antennas also ensure stable signals in all directions. Smart Channel Selection allows you to manually scan and switch frequencies using visual signal strength indicators.
Direct & Broadcast Modes
Compatible with the Pyro ecosystem, the Pyro 5 4K features wireless broadcast technology that enables one transmitter to connect to up to two receivers and two mobile devices with stable, line-of-sight signals over 1300' away.
When Broadcast mode is activated, the transmitter can transmit signals to a maximum of four receivers up to 656' away.
Large, Bright Monitor
The Pyro 5 4K features a 5.5" display with a brightness of 1500 cd/m², so it's clearly viewable in bright sunlight or dim environments.
The screen brightness is adjustable for optimal performance.
Camera Control
The camera control function allows you to adjust ISO, aperture, shutter speed, white balance, and focus mode directly from the touchscreen. It can also trigger camera focus with a simple tap. It's compatible with select Sony cameras with a separately available connector cable.
Versatile I/O
The Pyro 5 4K can be switched to operate as either a transmitter or a receiver. When in transmitter mode, the monitor features one HDMI input, one SDI input, and one HDMI loop output.
When in receiver mode, it features one HDMI output.
Quick Multicam Switching
The transceiver enables seamless connection with all Pyro series units using a grouping preset.
You can group multiple devices and instantly switch monitoring between two cameras by utilizing two customizable buttons.
Lock Pairing
When multiple Pyro systems are in use, the Lock Pairing feature ensures each receiver stays securely connected to its original transmitter, preventing signal mix-ups.
Long Transmission Range
Utilizing dual-band 2.4/5 GHz technology, the Pyro 5 4K features a stable line-of-sight transmission range of up to 1312' with a minimal transmission latency of 60 ms with no image degradation. There are two transmission modes to choose from: Smooth mode adjusts the transmission for the lowest latency for longer distances, and HD mode optimizes the image with a stable bit rate up to 12 Mb/s, even up to 1312' away.
HD Mode & Smooth Mode
- HD mode delivers 12 Mb/s bit rate video at a 75 ms latency
- Smooth mode dynamically adjusts the bit rate and delivers video at 60 ms for longer-distance transmission
RTMP Streaming
With built-in RTMP streaming, you can easily stream video to popular live broadcast or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and more.
Record to SD Card
The Pyro 5 4K features an SD card slot that supports extended MP4 video recording of up to 40 minutes in a single session using an external standard SD card. You can also use an SD card to apply custom LUTs during video export. It features file organization and supports a streamlined editing workflow. You can also import data from external devices and ingest on-set screenshots, overlaying them onto the current recording screen for scene restoration or replication purposes.
Efficient Proxy Recording
The monitor allows proxy files to be recorded directly to an SD card while monitoring in real time. Files are automatically organized into folders, and proxy files are instantly ready to review or cut. The proxy files include timecode to sync with your camera for fast, accurate editing.
Image Tools
The custom shortcut key feature, which can be used for dual-view monitoring, can also be used to quickly launch image tools such as waveform, recording, focus assist, touch to focus, and other image analysis functions.
